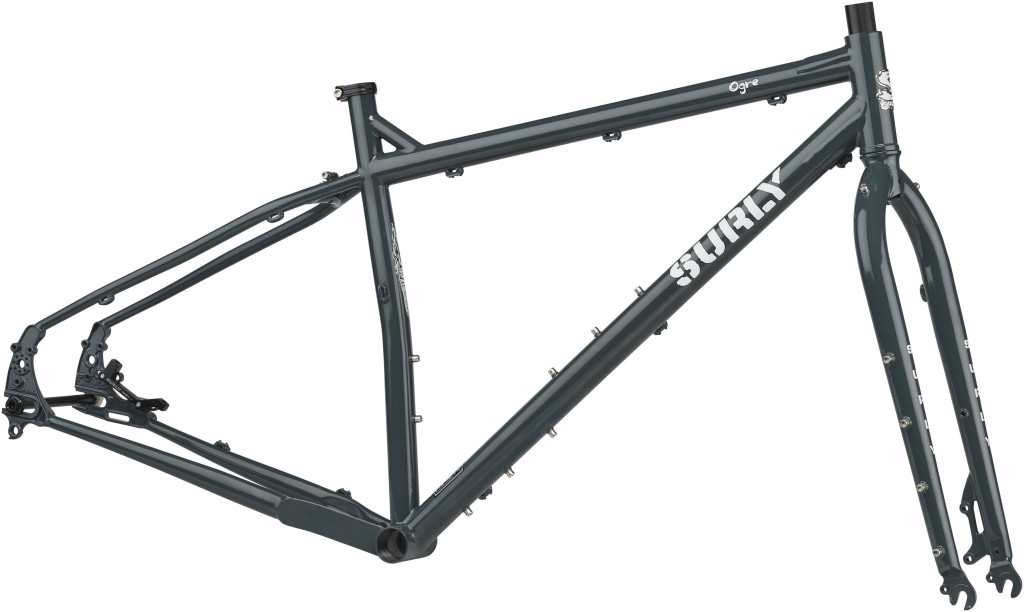

Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

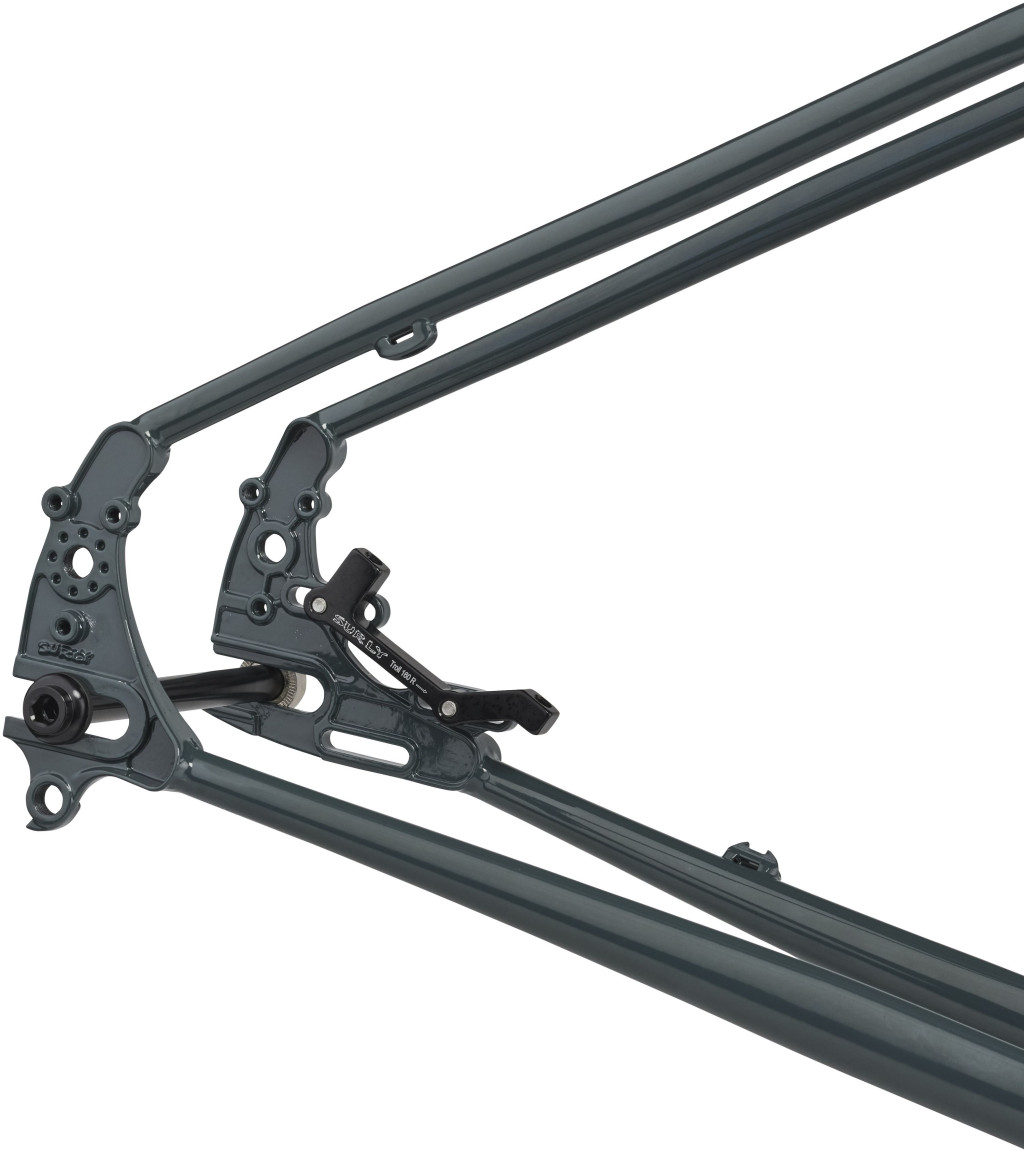

Rear Dropout Configuration: Horizontal slotted with optional vertical dumpout
Rear Hub Spacing: "Gnot-Boost" 145mm
• 12 x 142mm or 12 x 148mm (axle included)
• 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Front Hub Spacing: 10 x 100mm
Rear Brake: Disc - 51mm I.S. (160mm max rotor)
Front Brake: Disc - 51mm I.S. (203mm max rotor)

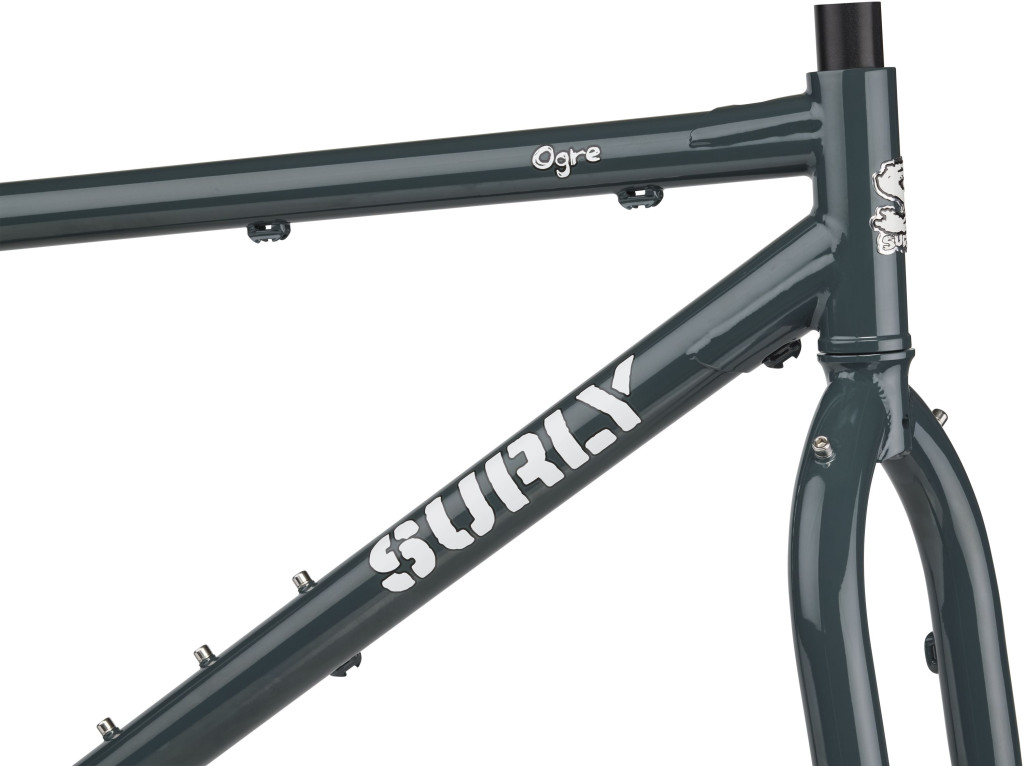

Head Tube: Ø34mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.): EC34/28.6
Stock Headset Lower (S.H.I.S.): EC34/30
Seat Collar: Ø30mm
Seatpost: Ø27.2mm
Front Derailleur (Clamp): High direct mount top-pull (Ø31.8mm)
• 26mm offset adapter (not included) for 142 or 135mm rear hub spacing
• 29mm offset adapter (not included) for 148mm rear hub spacing
Max Chainring (CL):
• 1x (Mtn): 42T
• 2x (Mtn): 34/46T
• 3x (Mtn): 24/36/48T
• 1x (Boost): 46T
• 2x (Boost): 42/48T

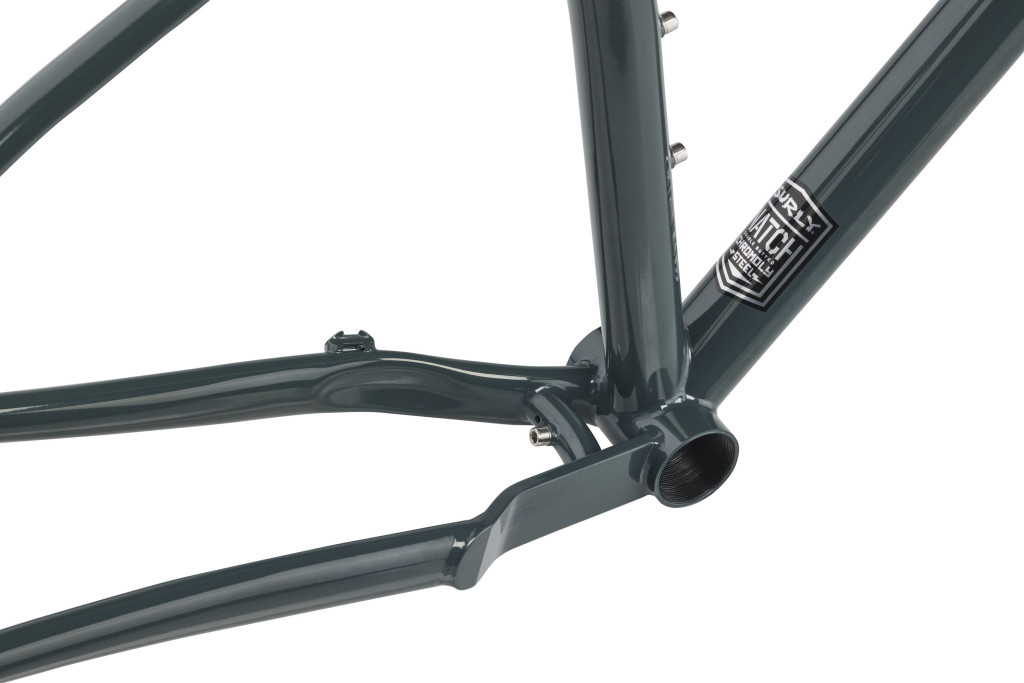

Bottom Bracket: 73mm threaded (1.37" x 24TPI)
Tire Clearance Frame:
• 27.5 x 3.0” (27.5 x 2.8" with fenders)
• 29 x 2.6" (29 x 2.5" with fenders)
Tire Clearance Fork:
• 27.5 x 3.0" (w/o fenders) 27.5 x 2.8" (w/ fenders)
• 29 x 2.6" (w/o fenders) 29 x 2.5" (w/ fenders)
Rigid Fork Spec: 447 x 43mm
Max Suspension Fork Length: N/A
Bottle Mounts Frame: 2 Three-Pack (XS-SM)
• 1 Standard + 2 Three-Pack (MD - XL)
Bottle Mounts Fork: 4 Three-Pack
Rack Mounts Frame: Yes (upper and lower threaded)
Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame: Yes
Fender Mounts Fork: Yes
Other Features:
• Dedicated Rohloff cable routing and mount for OEM 2 axle plate
• Dedicated Surly Trailer mounts
