Részletek

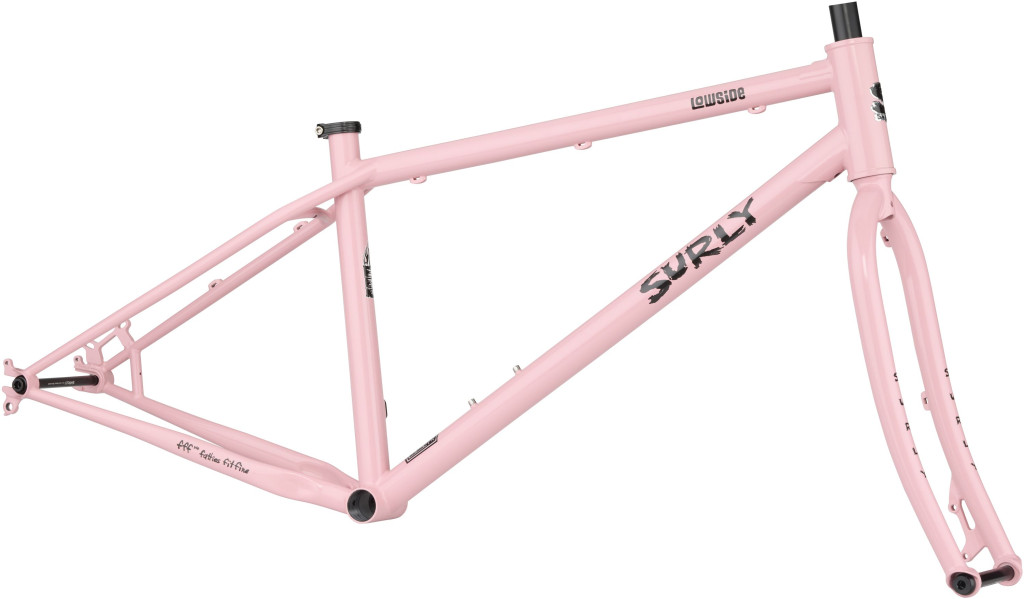

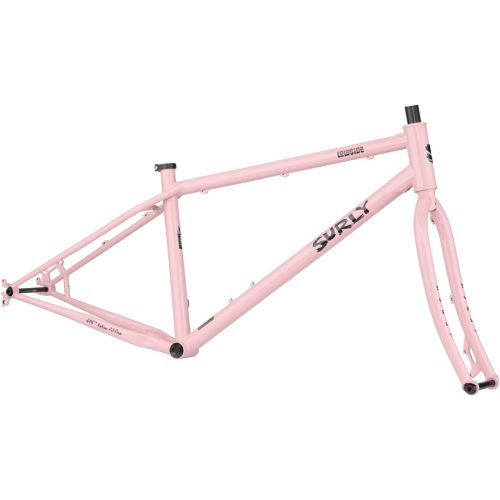

Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

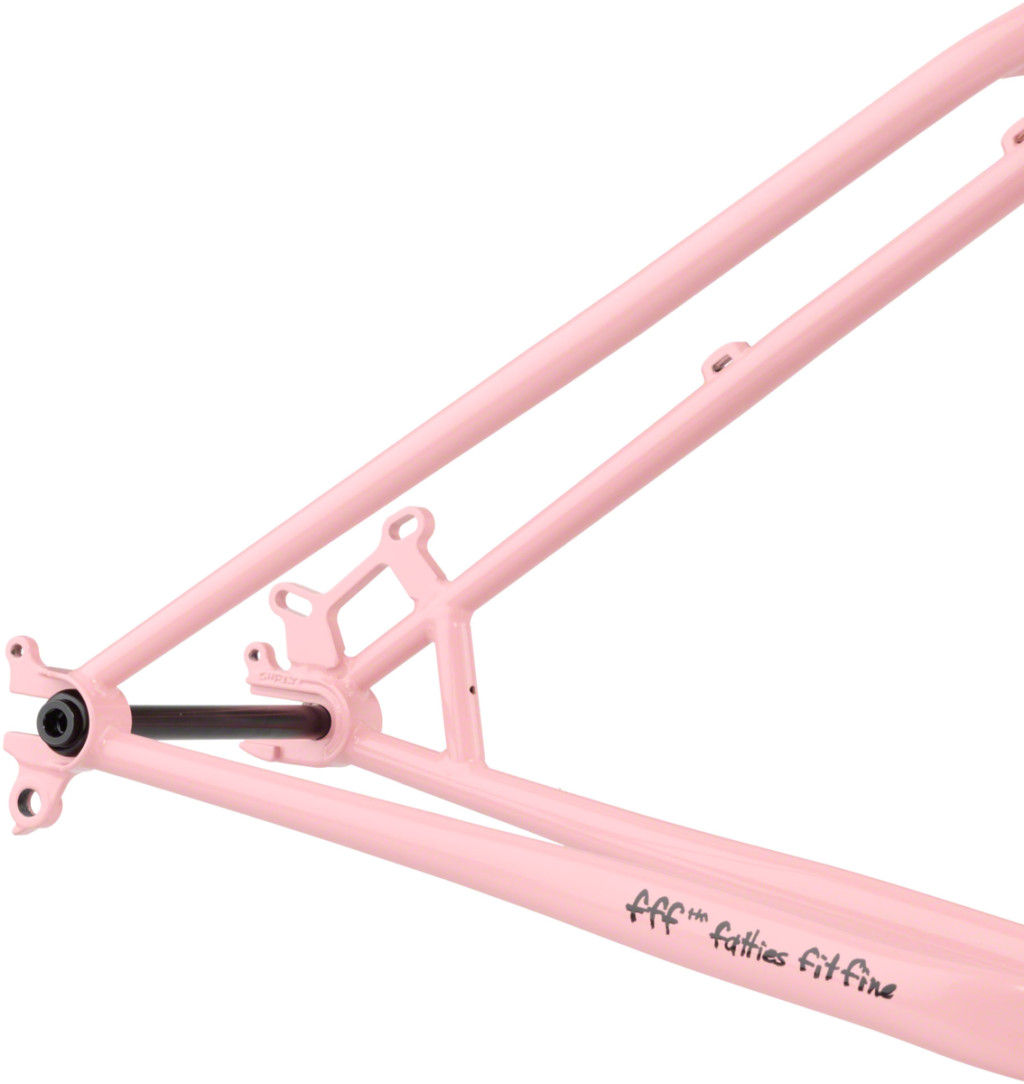

Rear Dropout Configuration: Horizontal slotted with optional vertical dumpout
Rear Hub Spacing: "Gnot-Boost" 145mm
- 12 x 142mm or 12 x 148mm (Surly axle included)
- 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Front Hub Spacing: 15 x 110mm (Surly axle included)
Rear Brake: Disc - 51mm I.S. (203mm max rotor)
Front Brake: Disc - 51mm I.S. (203mm max rotor)

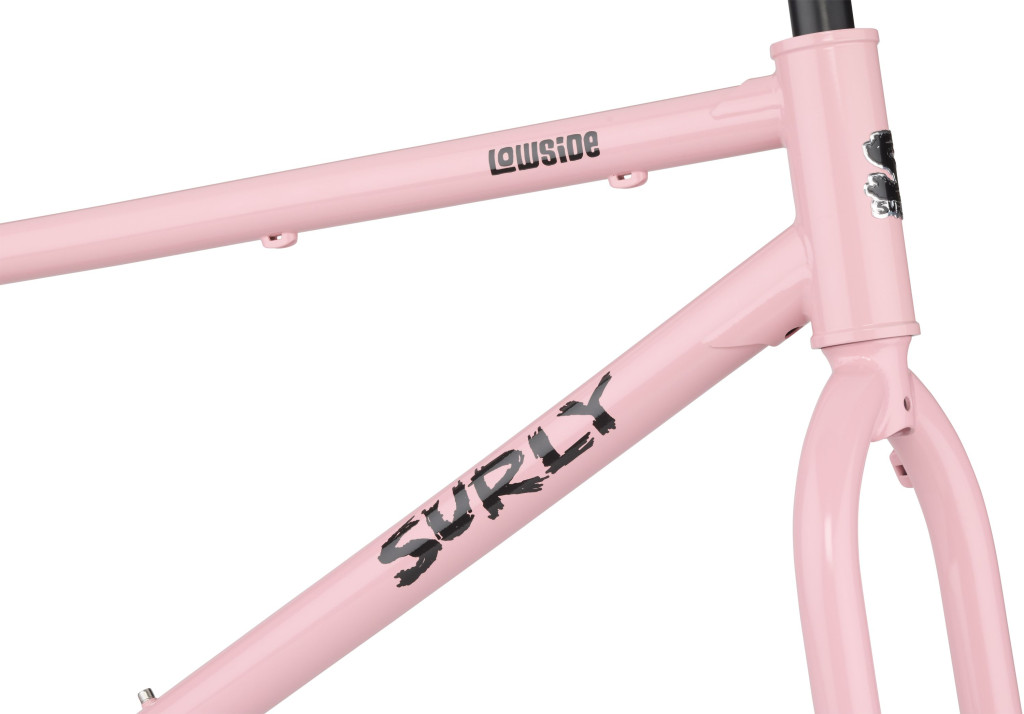

Head Tube: Ø44mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S): ZS44/28.6
Stock Headset Lower (S.H.I.S): EC44/30

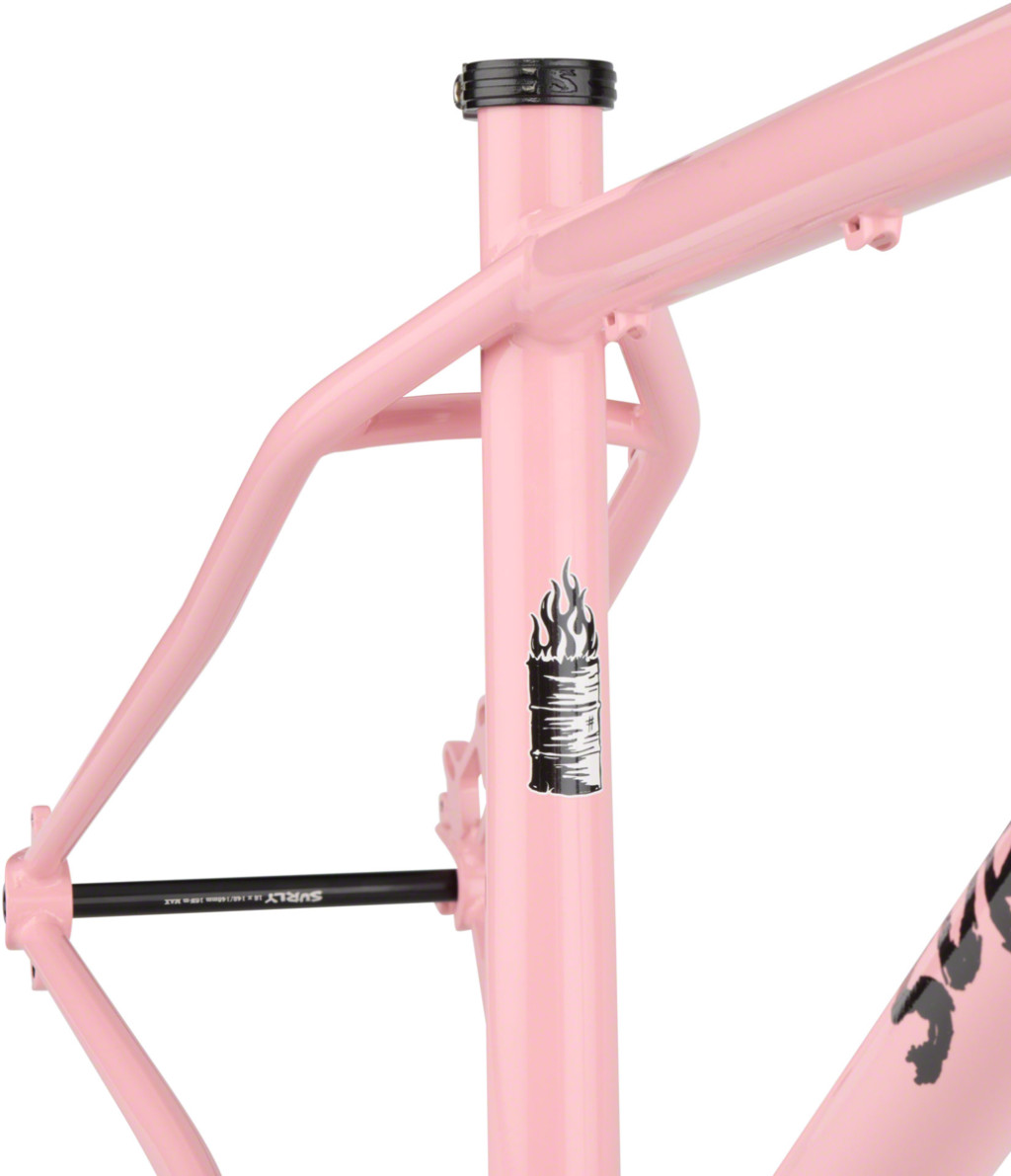

Seat Collar: Ø33.1mm
Seatpost: Ø30.9mm
Front Derailleur (Clamp): High direct mount top-pull (Ø34.9mm)
- 26mm offset adapter (not included) for 142 or 135mm rear hub spacing
- 29mm offset adapter (not included) for 148mm rear hub spacing
Max Chainring (CL):
- 1x (Mtn): 33T
- 1x (Boost): 36T

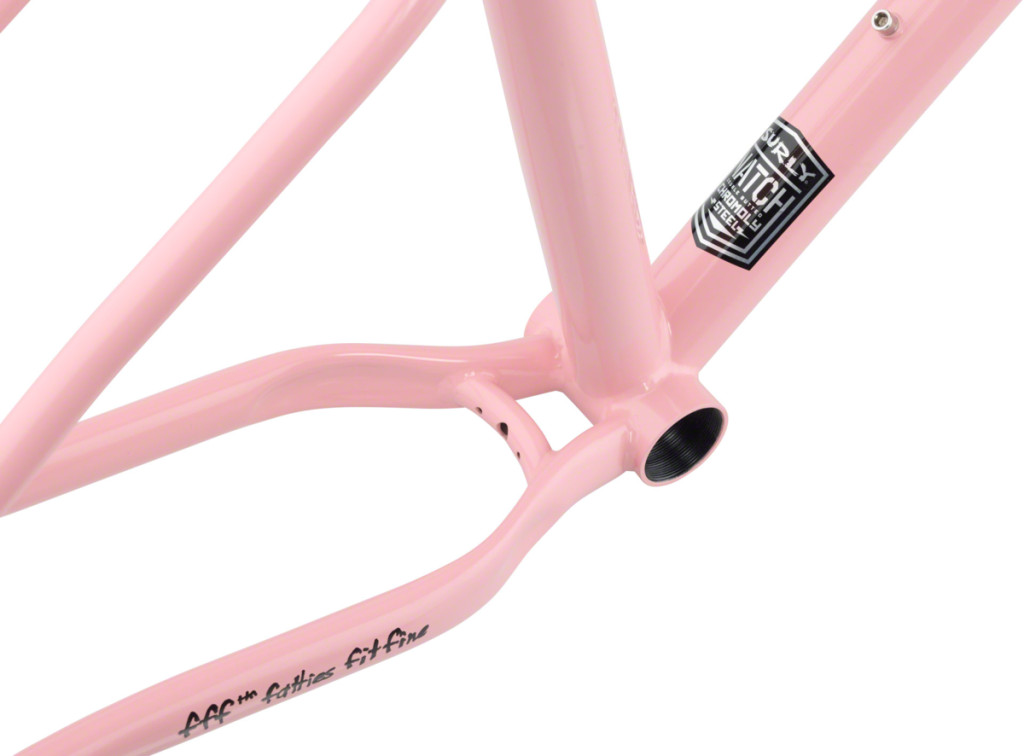

Bottom Bracket: 73mm threaded (1.37" x 24TPI)
Tire Clearance Frame:
- 26 x 3.0"
- 27.5 x 2.8"
Tire Clearance Fork:
- 26 x 3.0"
- 27.5 x 2.8"
Rigid Fork Spec: 420 x 47mm
Max Suspension Fork Length: 490 x 47mm (26 100mm)
Bottle Mounts Frame: 1 Standard
Bottle Mounts Fork: N/A
Rack Mounts Frame: N/A
Rack Mounts Fork: N/A
Fender Mounts Frame: N/A
Fender Mounts Fork: N/A
Other Features: Internal dropper post routing compatible
