Részletek
Frame Construction: 100% Surly Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction: 100% Surly Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

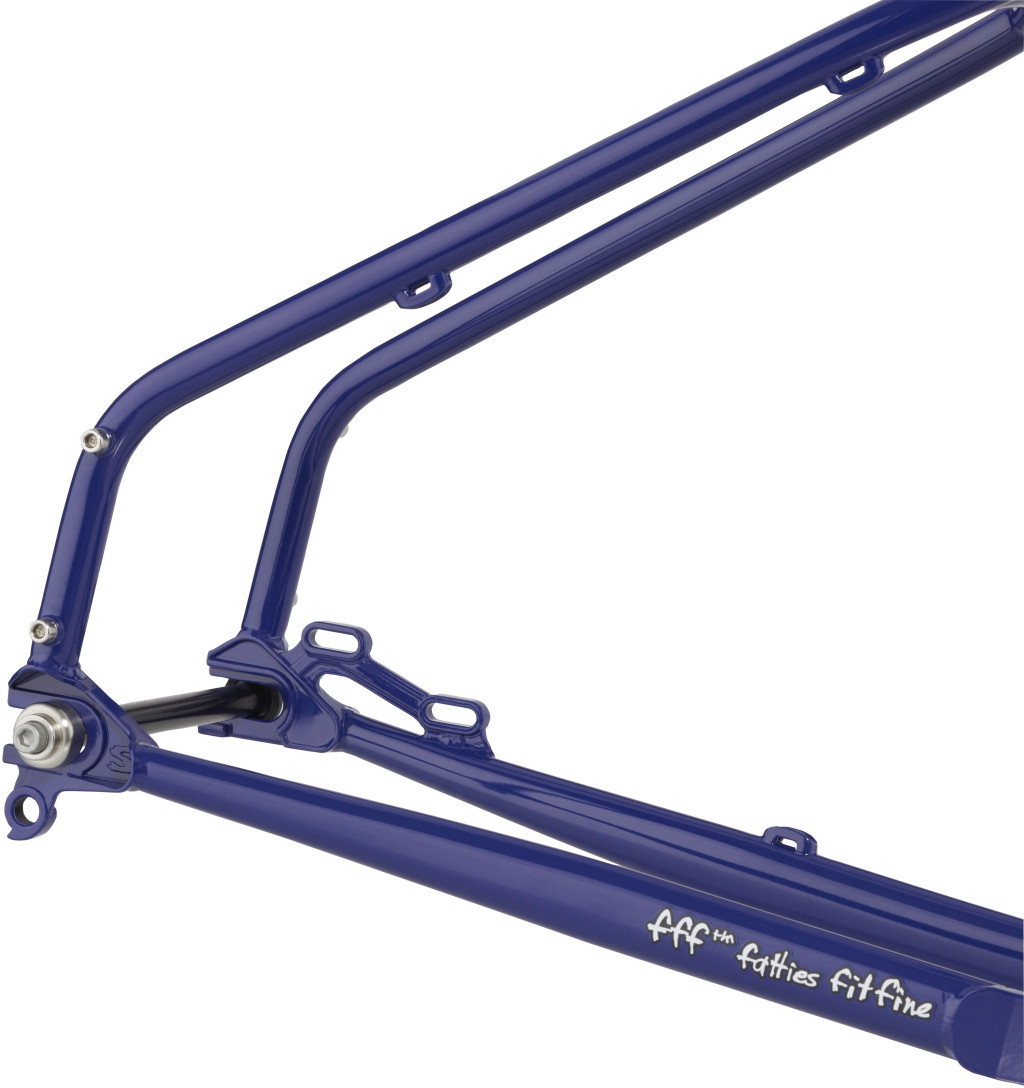

Rear Dropout Configuration: Horizontal slotted with optional vertical dumpout
Rear Hub Spacing: "Gnot-Boost" 145mm; 12 x 142mm or 12 x 148mm (Surly axle included); 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Front Hub Spacing: 15 x 110mm (Surly axle included)
Rear Brake: Disc - 51mm I.S. (203mm max rotor)
Front Brake: Disc - 51mm I.S. (203mm max rotor)
Headtube: Ø34mm
Steerer Tube: Ø28.6mm
Crown Race: Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S): EC34 or ZS34
Stock Headset Lower (S.H.I.S): EC34
Seat Collar: 33.1mm
Seatpost: Ø30.9mm
Front Derailleur (Clamp): High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing
Max Chainring (CL):
- 1x (mtn): 36T
- 2x (mtn): 36/26T
- 1x (Boost): 38T
- 2x (Boost): 39/32T

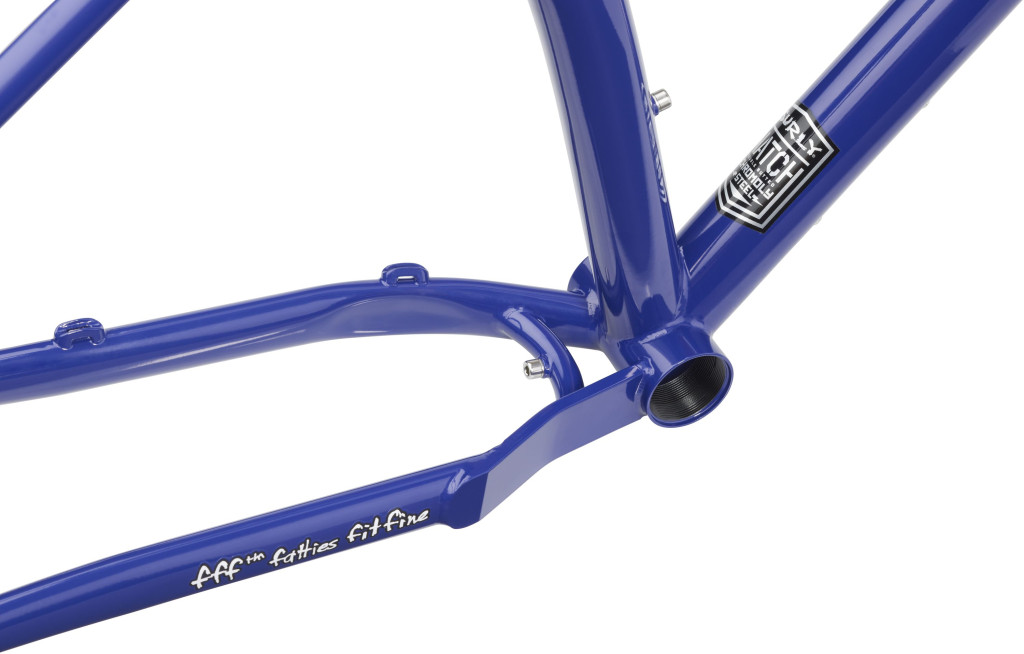

Bottom Bracket: 73mm BSA, threaded
Tire Clearance Frame:
- 27.5 x 3” (27.5 x 2.8” with fender)
- 29 x 2.1–2.5” with or without fender (2.1” clearance with wheel all the way forward; 2.5” clearance with wheel all the way back in dropout)
Tire Clearance Fork:
- 27.5 x 2.8” (27.5 x 2.6” with fender)
- 29 x 2.2” (29 x 2.0” with fender)
Rigid Fork Spec: 420 x 50mm
Design Suspension Fork Length: N/A
Max Suspension Fork Length: 420mm
Bottle Mounts Frame: 3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL
Bottle Mounts Fork: 3-pack mounts on each fork blade
Rack Mounts Frame: Yes (upper and lower threaded)
Rack Mounts Fork: Yes (upper and mid-blade threaded)
Fender Mounts Frame: Yes
Fender Mounts Fork: Yes
Other Features: Internal dropper post routing
