Részletek

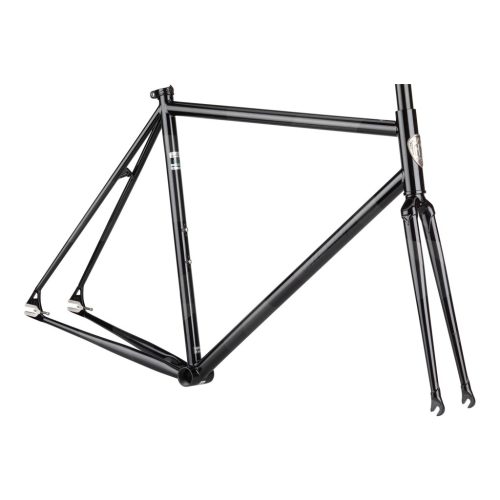

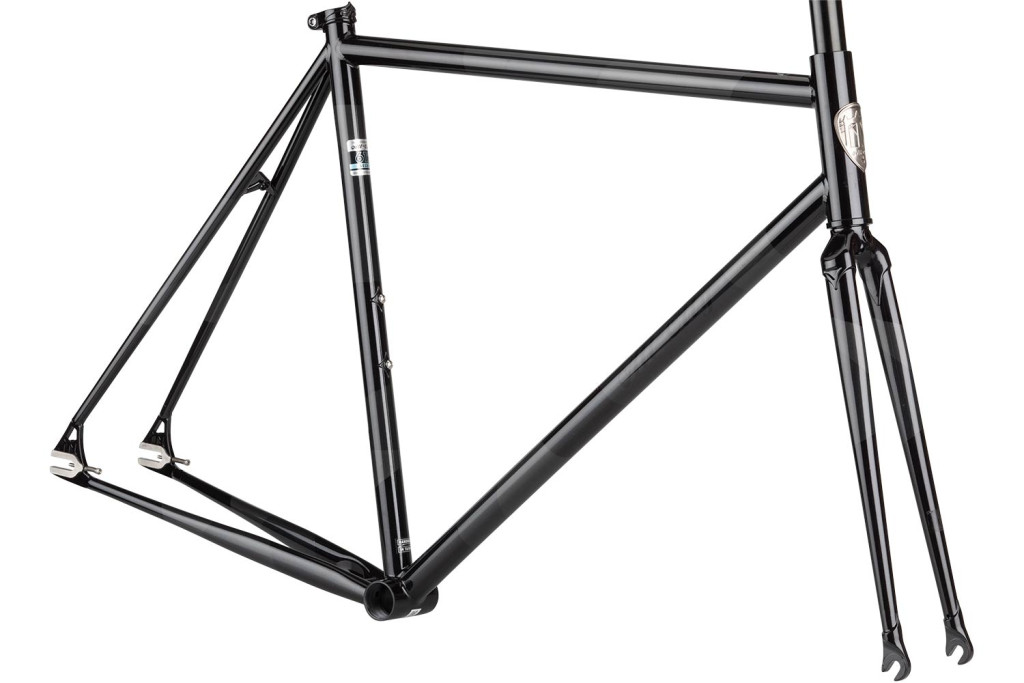

Frame Construction: 612 Select Chromoly Steel, Tig Welded and Brazed, E.D. Coated
Fork Construction: 612 Select Chromoly Steel, Tig Welded and Brazed, E.D. Coated

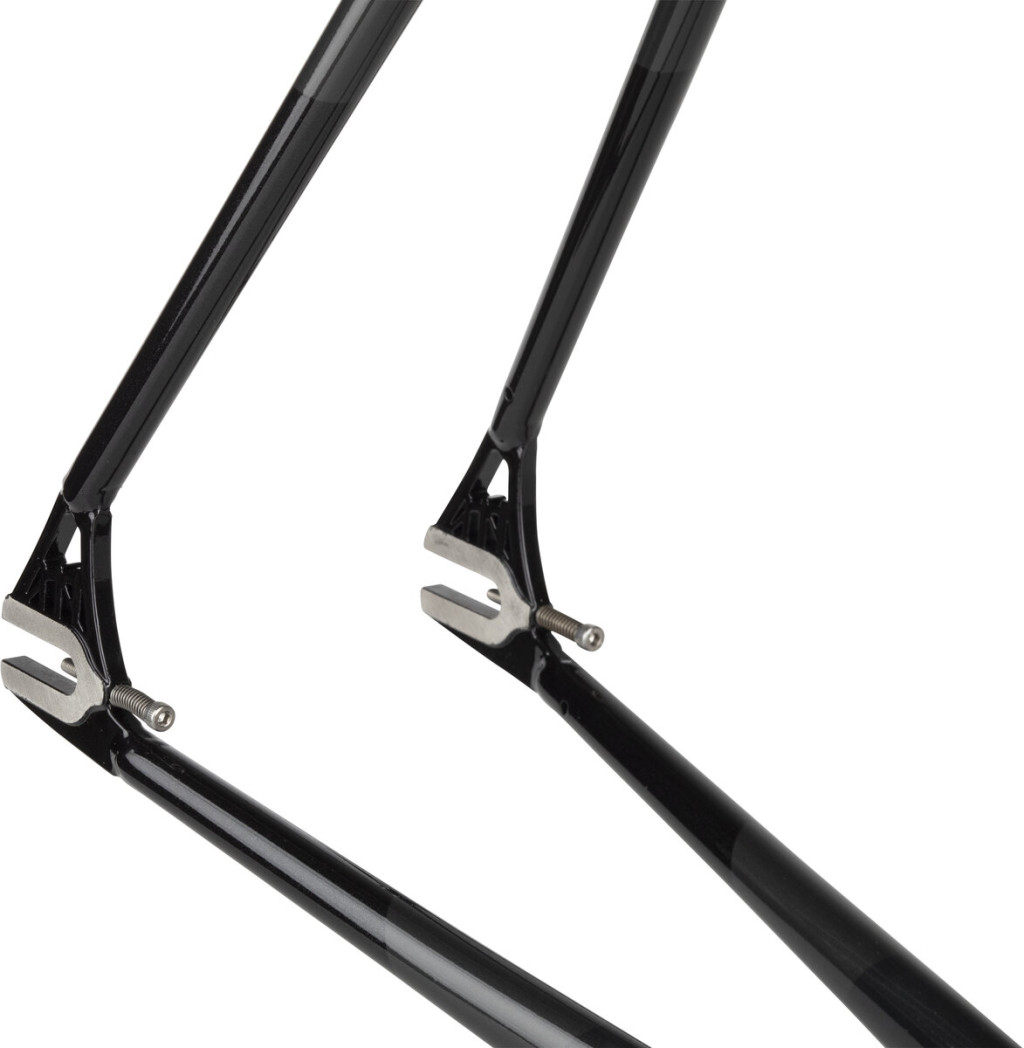

Rear Dropout Configuration: All-City Signature Hennepin Bridge Track Drop Out, Stainless Steel
Rear Hub Spacing: 120mm
Front Hub Spacing: 100mm
Rear Brake: Rim - Short Reach Caliper
Front Brake: Rim - Short Reach Caliper

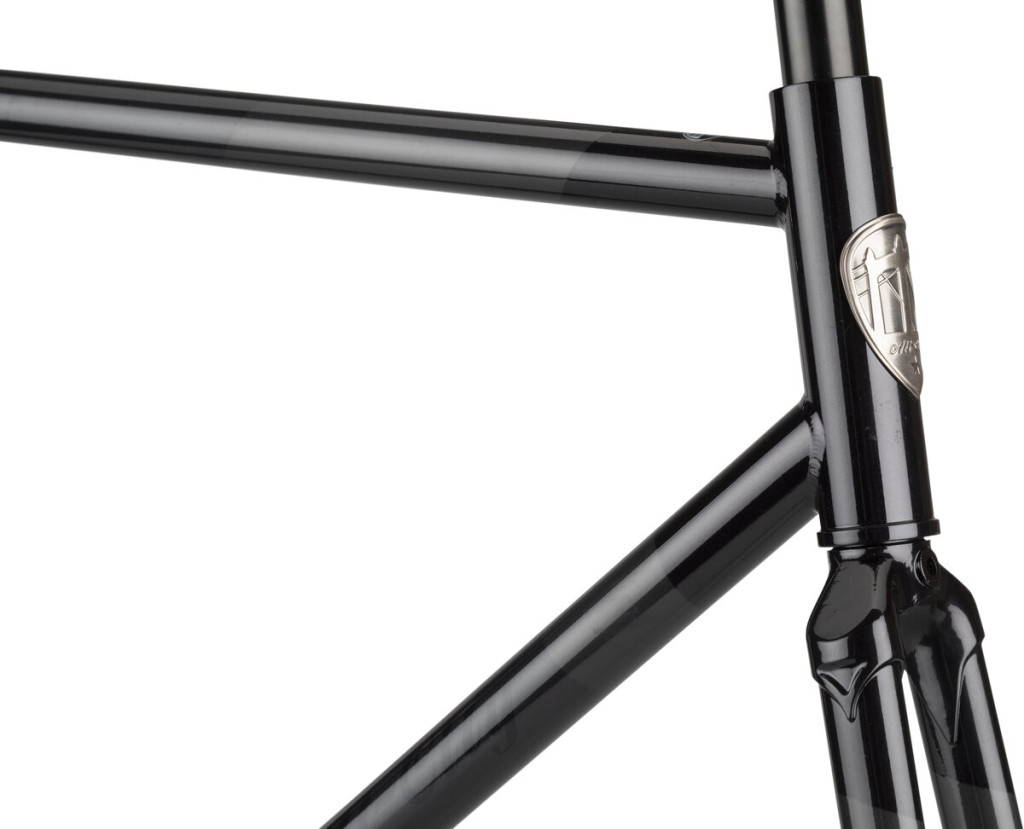

Headtube: Ø34mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S): EC34/28.6
Stock Headset Lower (S.H.I.S): EC34/30

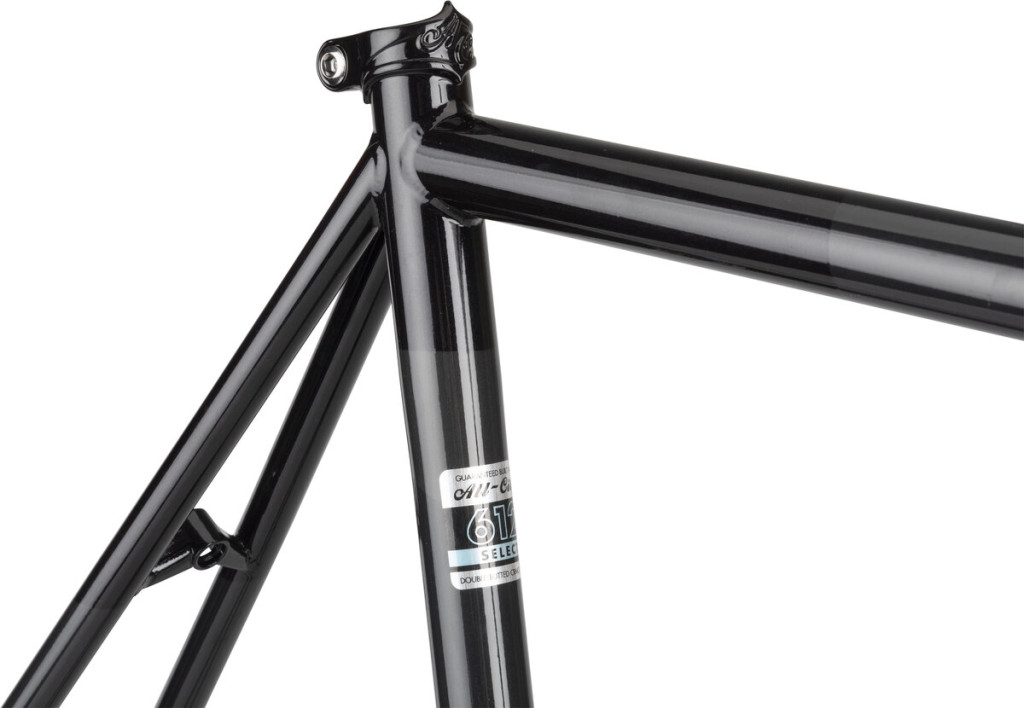

Seat Collar: All-City Signature Brazed-On
Seatpost: Ø27.2mm
Max Chainring (CL): 1x: 60t max

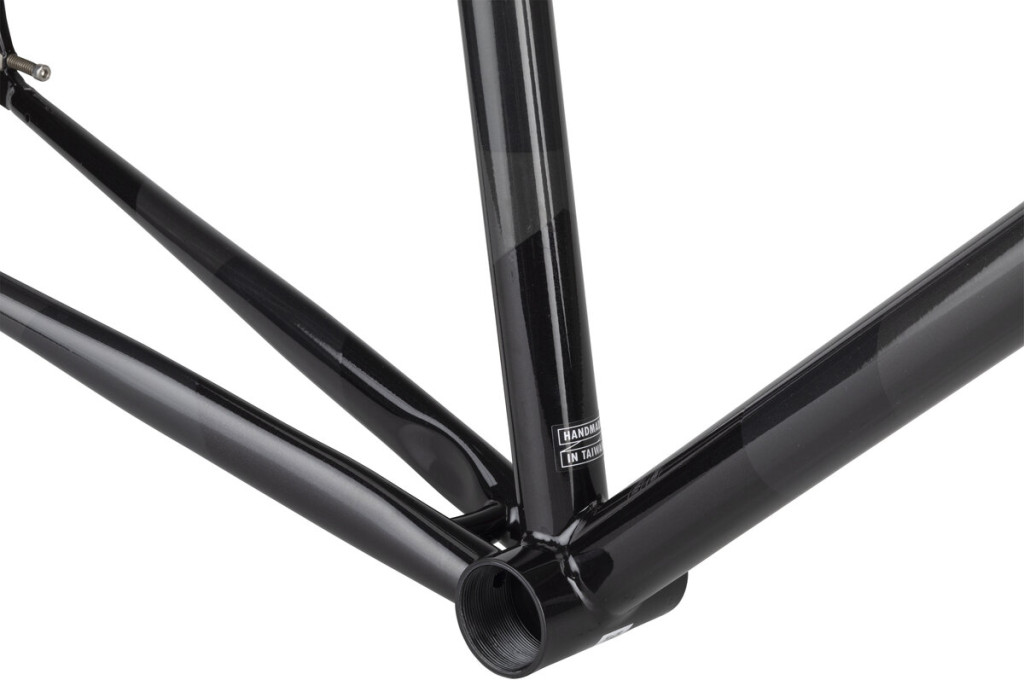

Bottom Bracket: English Threaded, BSA 68 shell
Tire Clearance Frame: 700c x32mm / 700c x 28mm with fenders
Tire Clearance Fork: 700c x32mm / 700c x 28mm with fenders
Rigid Fork Spec: 375mm Axle to Crown with 32mm Offset
Bottle Mounts Frame: One, located on Seat Tube
Bottle Mounts Fork: N/A
Rack Mounts Frame: N/A
Rack Mounts Fork: N/A
Fender Mounts Frame: N/A
Fender Mounts Fork: N/A
Other Features: N/A
